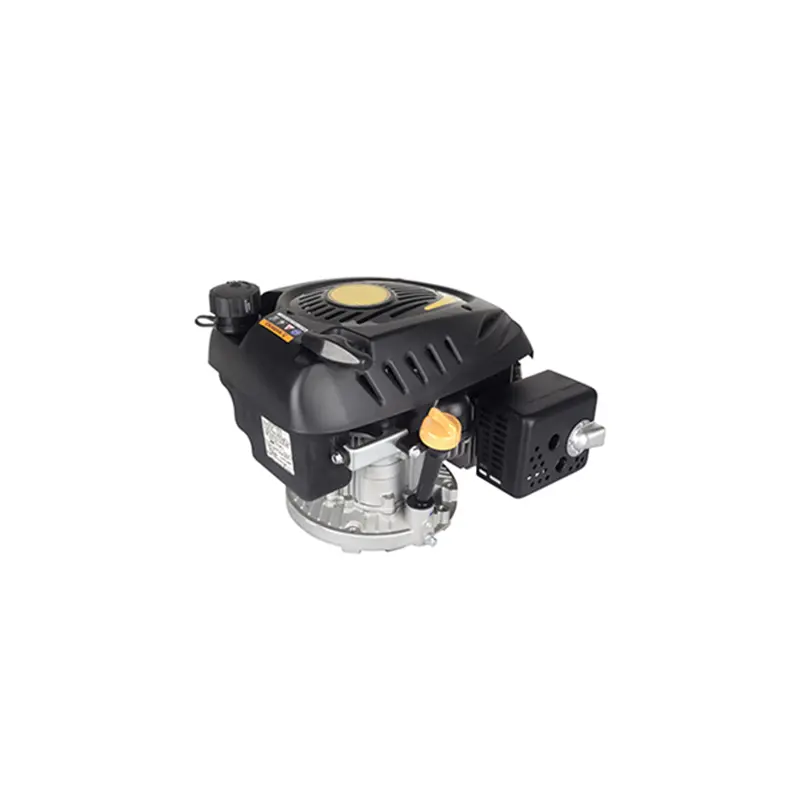

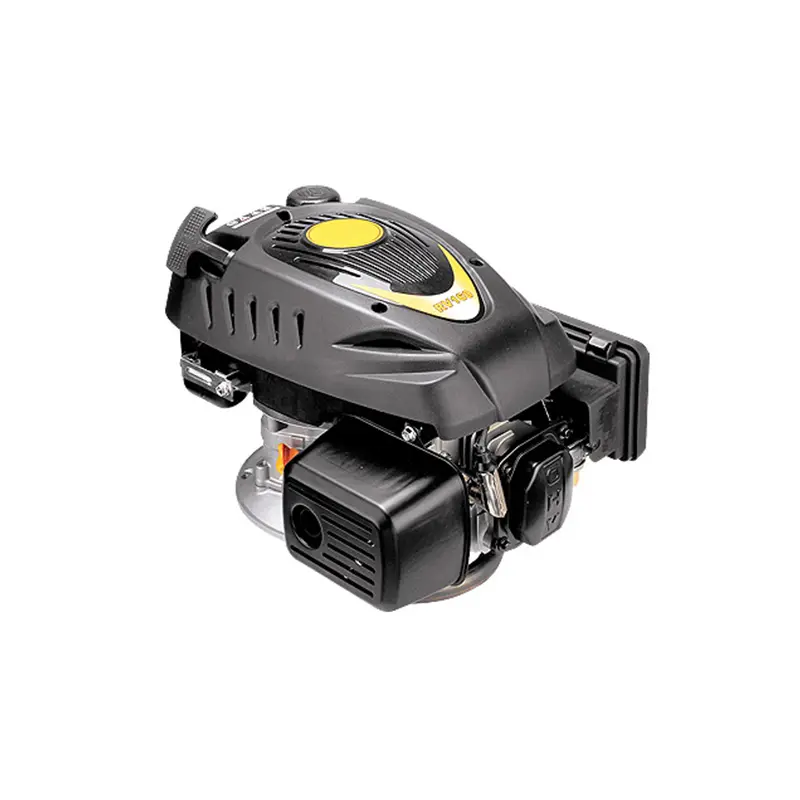

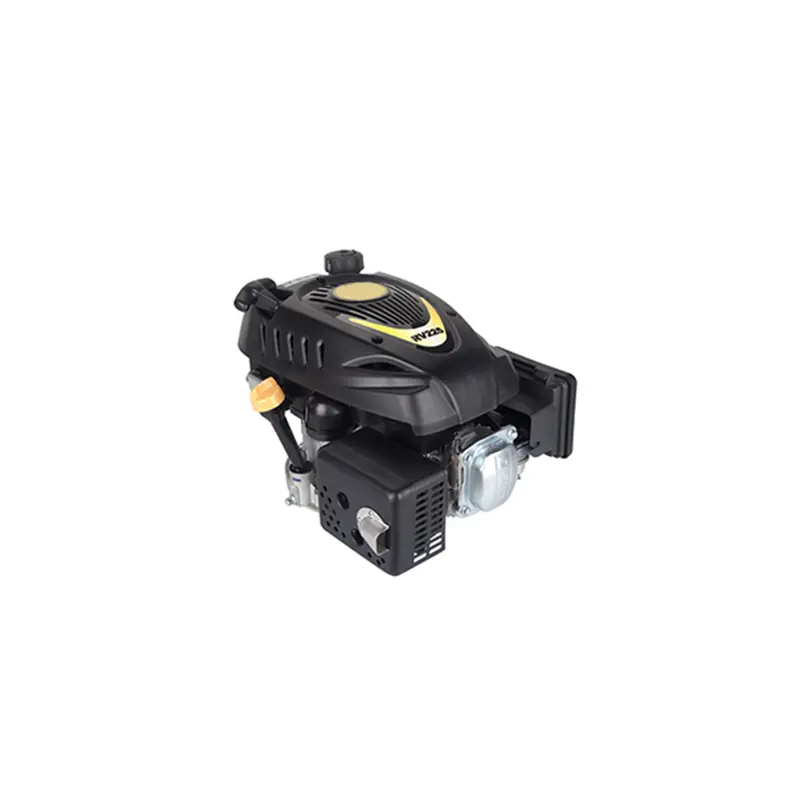

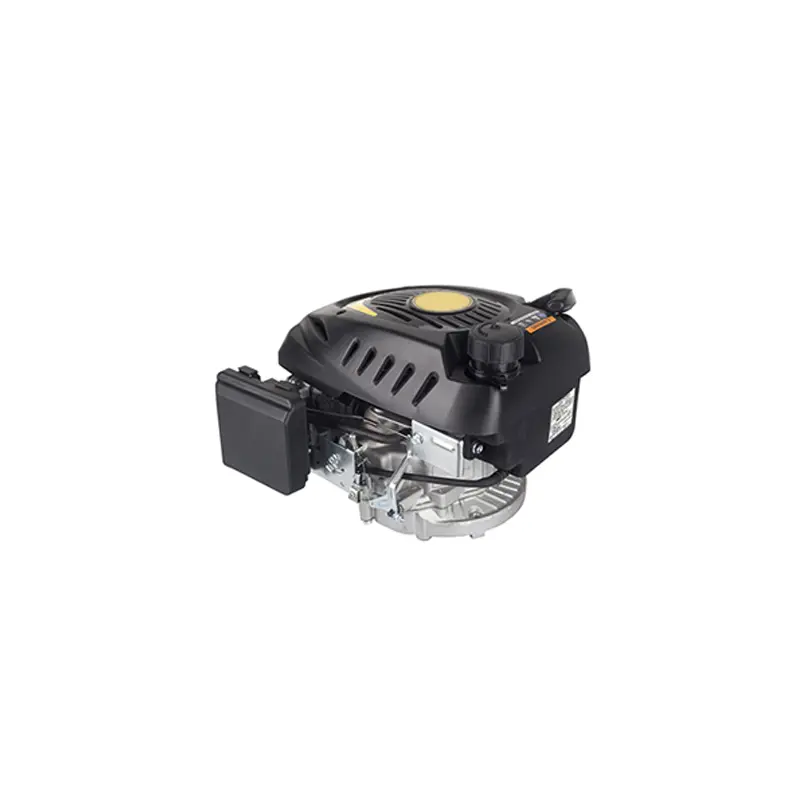

The RV225 Vertical Shaft Engine is the perfect power source for equipment like lawnmowers, tillers, and pressure washers. Delivering a solid 4.0kw of power and 12.5N.m of torque from its efficient 223ml 4-stroke design, this engine provides the reliable performance needed to tackle tough residential and commercial jobs with ease.
Featuring a compact and lightweight design at only 14kg, the RV225 is easy to install and helps improve equipment maneuverability. A dependable recoil starter ensures quick and effortless startups, making this engine an ideal choice for new builds or as a high-performance replacement motor to bring new life to your existing machinery.
| SPECIFICATIONS | RV225 |
|---|---|
| Engine type | Single cylinder, 4-Stroke(OHV) |
| Bore×Stroke | 70×58mm |
| Displacement | 223ml |
| Compression ratio | 8.3: 1 |
| Net power | 4.0kw / 3600rpm |
| Net torque | 12.5N.m / 2500rpm |
| PTO shaft rotation | Counterclockwise(Vertical output) |
| Ignition system | Capacitive discharge or inductive discharge |
| Starting system | Recoil starter |
| lubrication system | Forced splash |
| Carburetor | Flat suction valve carburetor |
| Governor system | Centrifugal mechanical |
| Air cleaner | Dual elements(foam) |
| Oil Capacity | 0.6L |
| Fuel tank capacity | 1L |
| Dimensions(L x W x H) | 404×362×292mm |
| Net weight | 14kg |
| Fuel consumption | ≤395g/kw·h |
