Top 5 Reasons to Choose a 225cc Vertical Shaft Engine for Your Lawn Mower

There is nothing more frustrating during peak cutting season than a walk-behind mower that stalls every time it hits thick, wet, or overgrown grass. Over time, original factory engines lose compression, burn oil, or suffer from chronic carburetor issues. When faced with a failing engine, many homeowners and commercial landscapers assume their only option is to buy a brand-new lawn mower. However, if your mower deck, wheels, and drive system are still structurally sound, buying a completely new machine is an unnecessary expense.

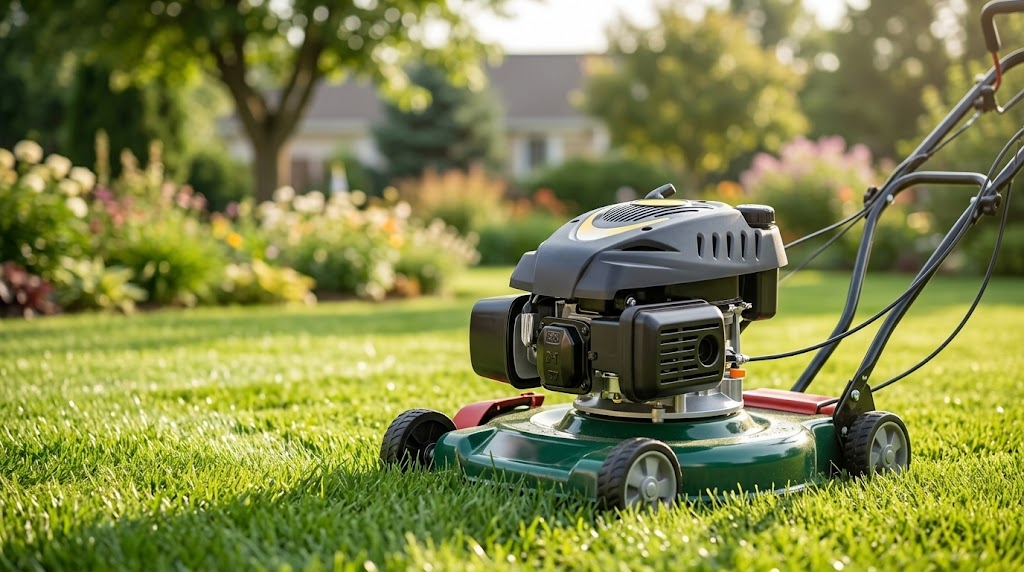

Enter the concept of walk behind lawn mower repower—replacing your tired factory engine with a high-performance power unit. In the world of small outdoor power equipment (OPE), the 225cc vertical shaft engine has emerged as the undisputed sweet spot. Offering the perfect balance of raw cutting torque, fuel efficiency, and universal mounting compatibility, this engine capacity breathes new life into aging equipment. Below are the top 5 reasons why upgrading to a 225cc vertical shaft engine is the smartest decision for your lawn mower.

1. Exceptional Power & Torque: Tame Thick, Wet Grass Effortlessly

When evaluating a lawn mower engine replacement 225cc model, the horsepower rating is only half the story. The true metric of cutting performance under heavy load is engine torque. Standard entry-level lawn mowers often feature 140cc to 160cc engines that produce around 6 to 8 N.m of torque. While sufficient for dry, manicured lawns, these smaller engines bog down instantly when encountering thick turf, damp morning grass, or tall weeds.

A high-output 225cc vertical shaft engine generates a massive peak torque of approximately 12.5 N.m at 2500 RPM. This substantial increase in rotational force allows your mower blades to maintain high RPM without stalling or slowing down. By keeping blade tip speed consistent, you achieve a clean, crisp cut in a single pass, eliminating unsightly grass clumping and drastically reducing total mowing time.

2. Advanced Overhead Valve (OHV) Design for Superior Fuel Efficiency

Modern small gas engines have evolved significantly beyond the noisy, smoke-emitting side-valve (L-head) models of the past. Today’s premier 225cc powerplants utilize an advanced 225cc 4 stroke vertical shaft engine configuration featuring Overhead Valve (OHV) technology.

An OHV lawn mower engine positions the intake and exhaust valves directly above the piston rather than to the side. This layout delivers several distinct performance advantages:

• Optimal Combustion Efficiency: Direct fuel-air intake results in a more complete fuel burn, lowering operating costs and maximizing runtime per tank.
• Thermal Management: Improved thermal efficiency keeps engine oil cooler, extending the internal lifespan of bearings, valves, and piston rings.
• Reduced Vibration and Noise: Balanced 4-stroke engineering drastically reduces operator fatigue during extended commercial mowing sessions.
• Eco-Friendly Emissions: Fully compliant with EPA and CE emission standards, producing minimal exhaust smoke and odor.

3. Universal Compatibility & Standardized 22mm Shaft Mounting

A common concern among DIY mechanics and equipment operators is fitment compatibility: “Will this engine actually fit my current mower deck?” Fortunately, manufacturers design 225cc utility engines with standardized industrial mounting geometries.

Most quality 225cc vertical shaft engines feature a universal 4-bolt mounting pattern on the base crankcase, matching standard industry footprints used by major equipment brands. Furthermore, opting for a 22mm vertical shaft small engine (or standard 7/8-inch shaft) ensures seamless compatibility with off-the-shelf blade adapters, pulleys, and self-propelled drive systems. Whether you are repowering a heavy-duty residential mower or a commercial push unit, swap installations can typically be completed in under two hours with standard hand tools.

4. Built to Last: Heavy-Duty Components for Commercial-Grade Durability

Worksite reliability requires rugged engineering. Unlike light-duty consumer engines designed with plastic gears and unlined aluminum blocks, professional-grade 225cc engines are engineered for extended operational lifespans under demanding conditions.

Key durability features to look for in a 225cc vertical engine include:

• Cast Iron Cylinder Sleeve: Withstands thermal stress, maintains cylinder wall integrity, and resists internal abrasion from dusty mowing environments.
• Dual-Element Air Filter: Features a foam pre-filter and pleated paper main element to prevent fine grass debris and dirt from entering the carburetor.
• Transistorized Magneto Ignition: Provides a strong, reliable spark for quick recoil starts on cold mornings without complex maintenance.
• Splash Lubrication System: Ensures continuous oil distribution across critical internal friction points under heavy working loads.

5. Unbeatably Cost-Effective: High Performance at a Fraction of the Price

When analyzing repowering lawn mower cost vs replace, the financial benefits of an engine swap are overwhelming. A new commercial-grade or heavy-duty residential lawn mower with comparable cutting torque can cost anywhere from $600 to well over $1,200.

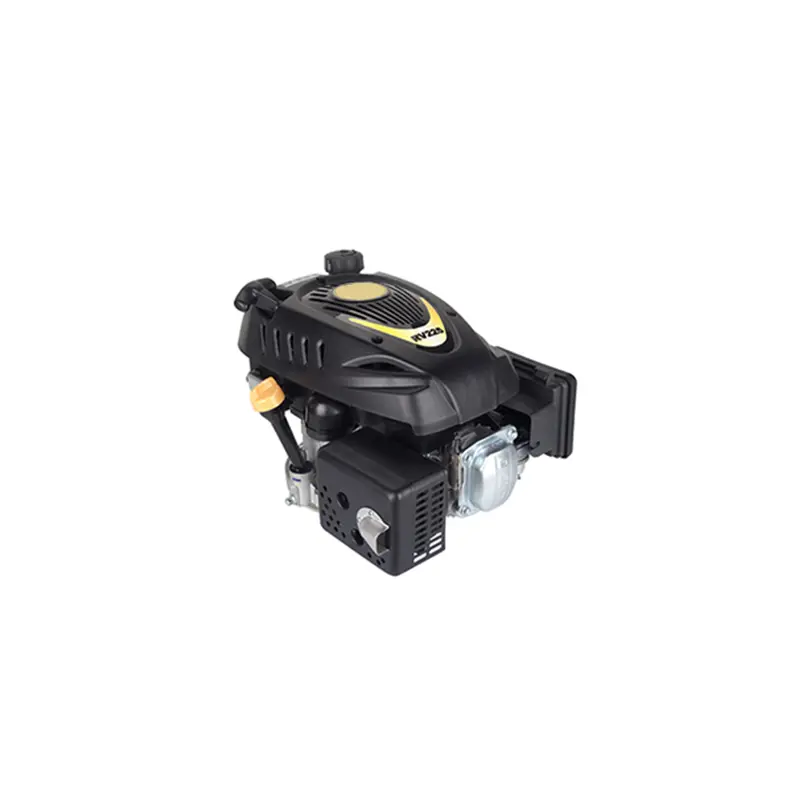

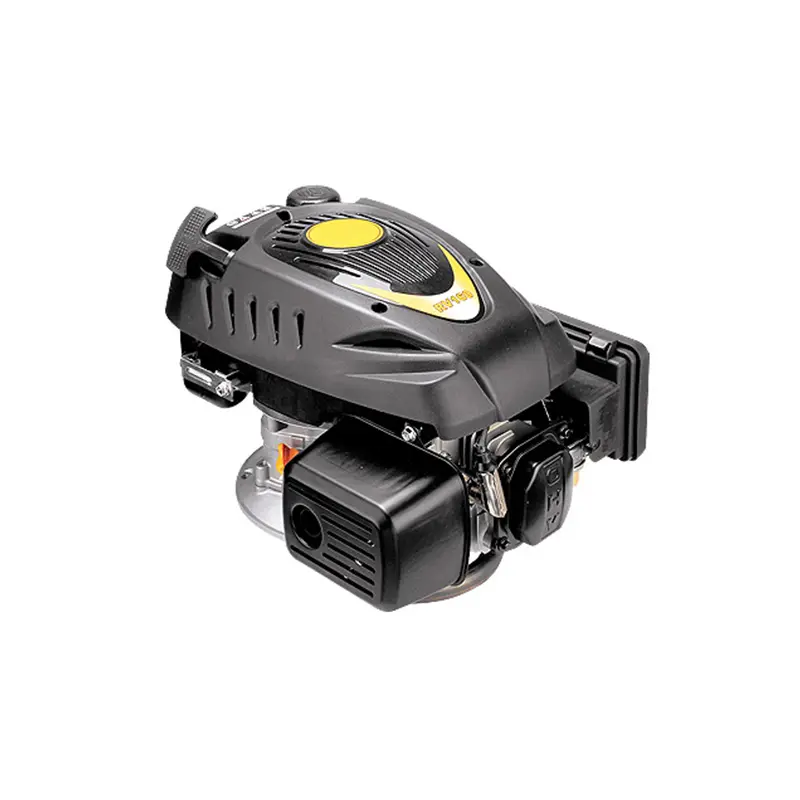

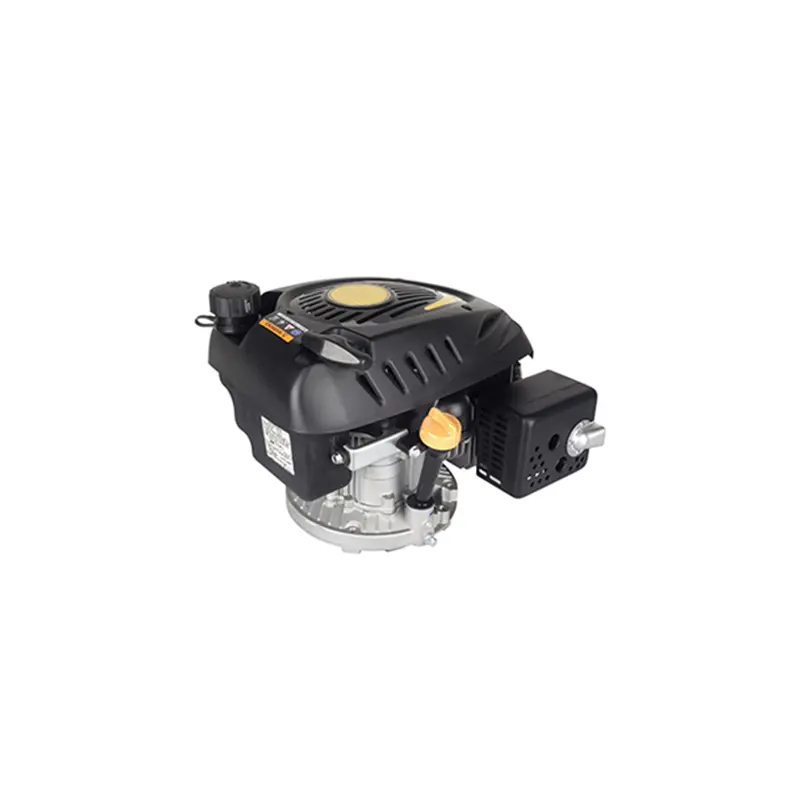

By contrast, purchasing a replacement 225cc vertical shaft engine (such as the Longdo RV225 series) costs a fraction of a new machine—often saving you up to 70% in capital expenditure. If your mower frame, deck, and drive wheels are in good physical condition, replacing only the power source restores factory-fresh cutting power while keeping money in your pocket. For equipment rental fleets, landscaping contractors, and cost-conscious homeowners, repowering delivers the highest return on investment (ROI).

Technical Specifications & Repower Checklist

To ensure a seamless engine upgrade, review the core technical specifications and fitment checklist below before selecting your replacement engine.

3-Step Pre-Purchase Fitment Checklist:

• Measure the Shaft: Confirm your current mower blade adapter matches a 22mm (7/8″) or 25.4mm (1″) vertical shaft diameter.
• Check Deck Mounting Pattern: Verify the 4-bolt mounting pattern on your mower deck chassis.
• Inspect Control Cables: Ensure your throttle and flywheel brake kill cable lengths align with the new engine linkages.

Upgrade Your Lawn Mower’s Heart Today

Replacing an unreliable, underpowered motor with a modern 225cc vertical shaft engine is the most cost-effective way to revitalize your lawn equipment. With unmatched 12.5 N.m torque, efficient OHV technology, and universal 22mm mounting compatibility, a 225cc engine upgrade delivers commercial-grade cutting performance at a fraction of the cost of a new machine.

Don’t let an underpowered engine slow down your lawn care operations. Explore Longdo Global‘s high-torque Gasoline Engine RV225 series or contact our technical support team today to request a quote and find the exact repower solution for your equipment!

FAQ

Q: Will a 225cc vertical shaft engine fit my current walk-behind mower?

A: Yes, in most cases. Most walk-behind mowers utilize industry-standard 4-bolt mounting patterns and 22mm (7/8″) vertical PTO shafts. Simply measure your original engine’s shaft diameter and mounting bolt holes to ensure an exact match.

Q: Is a 225cc engine better than a 140cc or 160cc engine?

A: Absolutely. A 225cc engine delivers significantly higher displacement and peak torque (~12.5 N.m vs. ~6–8 N.m in smaller engines). This extra torque prevents the mower blade from slowing down or clogging in dense, wet grass.

Q: What type of engine oil should I use in a 225cc 4-stroke lawn mower engine?

A: A standard SAE 10W-30 multi-viscosity engine oil is recommended for general temperature ranges. In hotter summer conditions, SAE 30 or 10W-40 four-stroke small engine oil provides optimal lubrication and protection.
